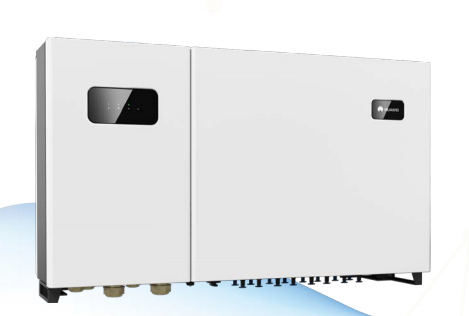

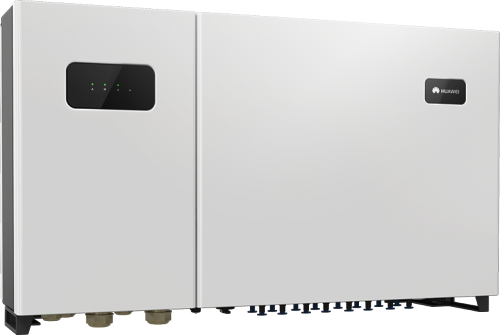

High Efficiency Smart String Inverter IP65 HUAWEI Solar Panel Power System

Brand Name : HUAWEI

Model Number : SUN2000-36KTL

Certification : EN 62109 -1/ -2, IEC 62109 -1/ -2, EN 50530, IEC 62116, IEC 60068, IEC 61683

Place of Origin : China

MOQ : 1

Price : Negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1 day produce 100 pieces

Delivery Time : Within 2 weeks

Packaging Details : 933 x 553 x 286 mm

Max. Efficiency : 98.6%

European Efficiency : 98.4%

Max. Input Voltage : 1,100 V

Max. Current per MPPT : 22 A

Max. Short Circuit Current per MPPT : 30 A

Start Voltage : 250 V

MPPT Operating Voltage Range : 200 V ~ 1,000 V

Rated Input Voltage : 620 V

Number of Inputs : 8

Number of MPP Trackers : 4

Rated AC Active Power : 36,000 W

Max. AC Apparent Power : 40,000 VA

Display : LED Indicators, Bluetooth + APP

Dimensions (W x H x D) : 930 x 550 x 283 mm (36.6 x 21.7 x 11.1 inch)

Weight (with mounting plate ) : 62 kg (136.7 lb.)

Operating Temperature Range : -25 °C ~ 60 °C ( -13 °F ~ 140 °F)

Max. Operating Altitude : 4,000 m (13,123 ft.)

AC Connector : Waterproof PG Terminal + OT Connector
