Solar System Smart PV Huawei Central Inverters With Optimised Performance

Anhui HG Industrial Co., Ltd.
Contact Now

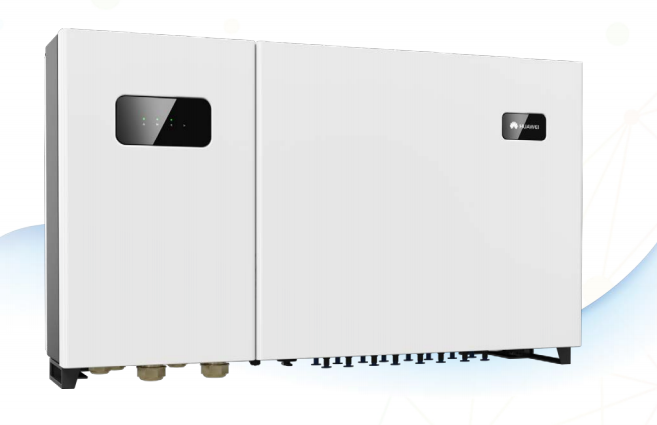

Solar System Smart PV Huawei Central Inverters With Optimised Performance

Brand Name : HUAWEI

Model Number : SUN2000-60KTL-HV-D1-001

Certification : EN 62109-1/-2, IEC 62109-1/-2, IEC 62116, EN 50530, IEC 60068, IEC 61683

Place of Origin : China

MOQ : 1

Price : Negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1 day produce 100 pieces

Delivery Time : Within 2 weeks

Packaging Details : 1078 x 608 x 313 mm

Max. Efficiency : 99.0%

European Efficiency : 98.8%

Max. Input Voltage : 1,500 V

Max. Current per MPPT : 22 A

Max. Short Circuit Current per MPPT : 30 A

Start Voltage : 650 V

MPPT Operating Voltage Range : 600 V ~ 1,450 V

Rated Input Voltage : 1,080 V

Number of Inputs : 8

Number of MPP Trackers : 4

Rated AC Active Power : 66,000 W

Max. Output Current : 48A

Display LED Indicators : Bluetooth + APP

Dimensions (W x H x D) : 930 x 600 x 270 mm (36.6 x 23.6 x 10.6 inch)

Weight (with mounting plate) : 62 kg (136.7 lb.)

Operating Temperature Range : -25 °C ~ 60 °C ( -13 °F ~ 140 °F)

Protection Degree : IP65

Contact Now

Reliable

 Natural cooling technology

 Protection degree of IP65

 Type II surge arresters for both DC and AC

Smart

 8 strings intelligent monitoring and fast trouble-shooting

 Power Line Communication (PLC) supported

 Smart I-V Curve Diagnosis supported

Safe

 DC switch integrated, safe and convenient for maintenance

 Residual Current Monitoring Unit (RCMU) integrated

 Fuse free design

Efficient

 Max. efficiency 99.0%

 European efficiency 98.8%

 4 MPPT per unit, effectively reducing string mismatch

Solar System Smart PV Huawei Central Inverters With Optimised PerformanceSolar System Smart PV Huawei Central Inverters With Optimised Performance
